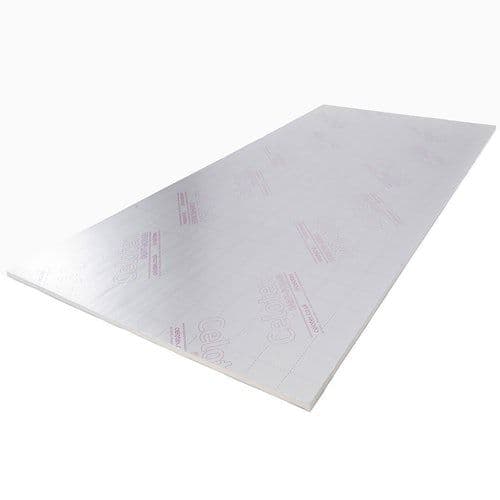

30mm Celotex TB4030 formerly TB3030 Insulation Board 2400x1200mm is a High Performance Rigid PIR Insulation Board. Celotex TB4030 30mm is ideal for overcoming thermal bridging and for use in two layer build-ups, including between and under rafters and over stud in timber frame wall lining applications. This is also the ideal product type to use as perimeter up-stands in concrete floor constructions.
This multi-purpose PIR Insulation board is one of our biggest selling products due to is diversity in application and it also achieves an A+ rating when compared to the BRE Green Guide.
The General application range of Celotex products are split in to three size categories
TB3000 12mm - 40mm
GA4000 50mm - 100mm
XR4000 120mm - 200mm
These are all essentially the same product but with varying thicknesses of Insulation Board.
Celotex Insulation boards are made from a expanded Polyisocyanurate (PIR) insulation foam with a foil facing to both sides.
This multi-purpose PIR Insulation board is one of our biggest selling products due to is diversity in application and it also achieves an A+ rating when compared to the BRE Green Guide.
The General application range of Celotex products are split in to three size categories
TB3000 12mm - 40mm
GA4000 50mm - 100mm
XR4000 120mm - 200mm
These are all essentially the same product but with varying thicknesses of Insulation Board.
Celotex Insulation boards are made from a expanded Polyisocyanurate (PIR) insulation foam with a foil facing to both sides.
Specification
Length: 2.4m.
Width: 1.2m.
Coverage: 2.88m2.
Thickness: 30mm.
rValue: 1.35m2K/W.
Weight: 0.98kg/m2.
Thermal conductivity: 0.022 W/mk - BS EN 12667.
Compressive strength: ≥120kPa - BS EN 826.
Water vapour resistance: >150MNs/g - BS EN 12086: Method B.
Spread of flame: Class 1 - BS 476-7.
Lambda Value = 0.022
Thickness = 30mm
Please note : Due to recent national shortages of PIR insulation, We now offer Celotex, Ecotherm, Recticel and Iko to help to offer a speedy delivery. You may be offered an alternative brand due to local stock availability.
Please feel free to contact us for a data sheet or any further application information
Product Type:
PIR Insulation Board
Edit Product Type:
PIR Insulation Board
Dimensions:
25x1200x2400MM (2.88 M²)
Usage:
General Application
ETA:
3-5 Days
MPN:
TB4030
Brand:
Celotex
Condition:
New
Product Code:
TB4030
