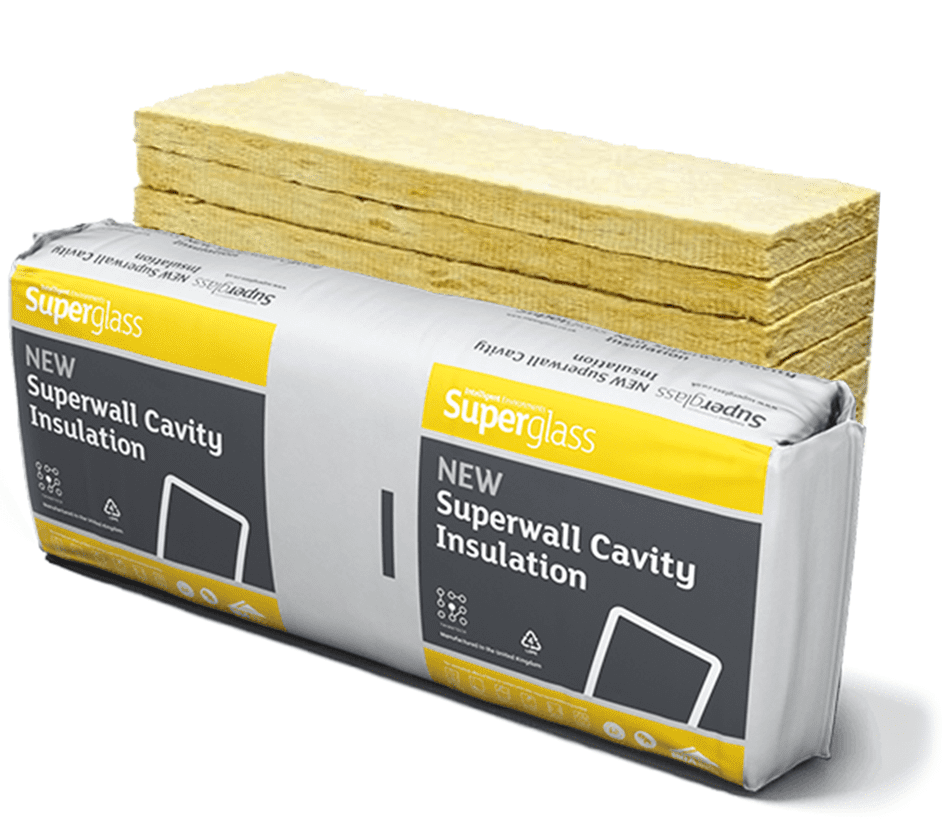

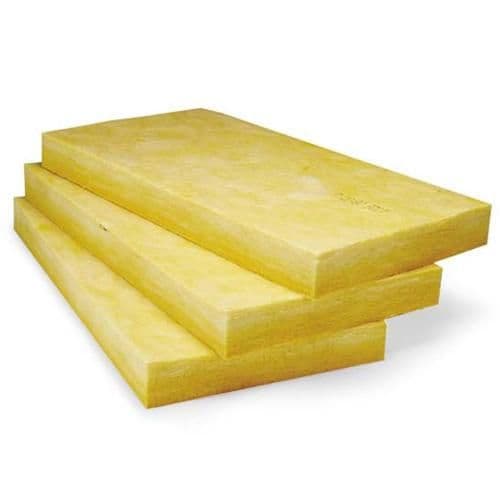

Superglass Superwall 36 is a British Board of Agrément (BBA) approved, non-combustible and water repellent glass mineral wool insulation cavity wall batt. The flexible batt is supplied at 455mm wide to allow easy installation between standard vertical wall tie spacings and minimum on-site cutting and waste.

Application

Superglass Superwall 36 is designed to provide thermal insulation in full-fill or partial-fill external masonry cavity walls, up to 25m in height for full-fill and with no height restriction in partial-fill (additional requirements apply for buildings above 12 metres in height for full fill and above 25 metres in height for partial fill). Superwall 36 is BBA approved for use in all UK exposure zones (subject to conditions detailed in the BBA Certificate and NHBC Standards).

Key Features:

• Thickness: 125mm
• Slab size: 1200 x 455mm
• Sheets: 6 slabs per pack
• Coverage: 3.28m2 per pack
• Thermal Conductivity: 0.036 W/mK
• Certification: Manufactured in accordance with BS EN 13162:2012, BS EN 13172:2012 & BS EN ISO 9001:2015

Thermal Performance

Declared thermal conductivity of 0.036W/mK.

Fire Performance

All Superglass products are deemed non-combustible and have a fire classification of A1 (the highest possible rating) when tested to BS EN 13501-1 Reaction to Fire.

Environment

• Manufactured in accordance with ISO 14001:2015 Environmental Management Systems.
• Zero Ozone Depletion Potential & zero Global Warming Potential.
• CFC & HCFC free.
• Generic BRE Green Guide Rating of A+.

Recycled Content

Manufactured from up to 84% recycled glass which would otherwise go to landfill.

Standards

Manufactured in accordance with:

• BS EN 13162:2012(+A1:2015) Thermal insulation products for buildings Factory made mineral wool (MW) products.
• BS EN 13172:2012 Thermal insulation products Evaluation of conformity.
• BS EN ISO 9001:2015 Quality Management Systems (QMS).

Water Resistance

Constructions incorporating the product and built in accordance with the Standards listed in section 4.4 of BBA Certificate 89/2231 Product Sheet 2, will resist the transfer of precipitation to the inner leaf and satisfy the national Building Regulations.

NHBC Standards

In the opinion of the BBA, Superwall 36 Cavity Wall Batt, if installed, used and maintained in accordance with BBA Certificate 89/2231 Product Sheet 2, can satisfy or contribute to satisfying the relevant requirements in relation to NHBC Standards, Chapter 6.1 External masonry walls.

Handling & Storage

Supplied compression packed in polythene to provide short term protection. For long term protection, the product must be stored indoors or under a waterproof covering in order to protect against weather damage. Should not be left permanently exposed to the elements.
